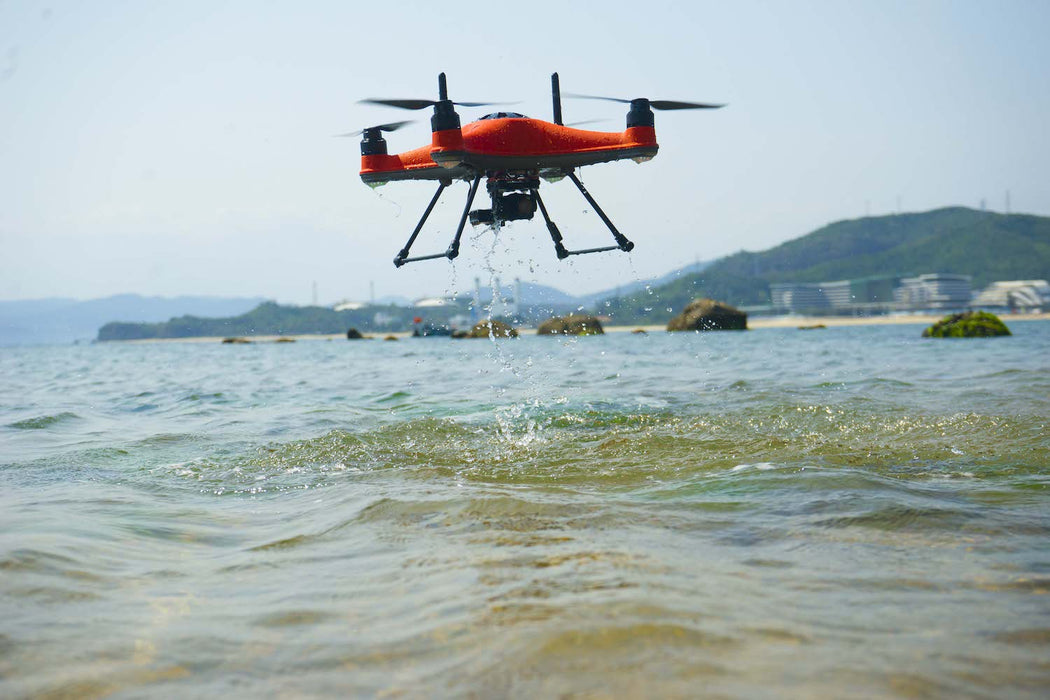

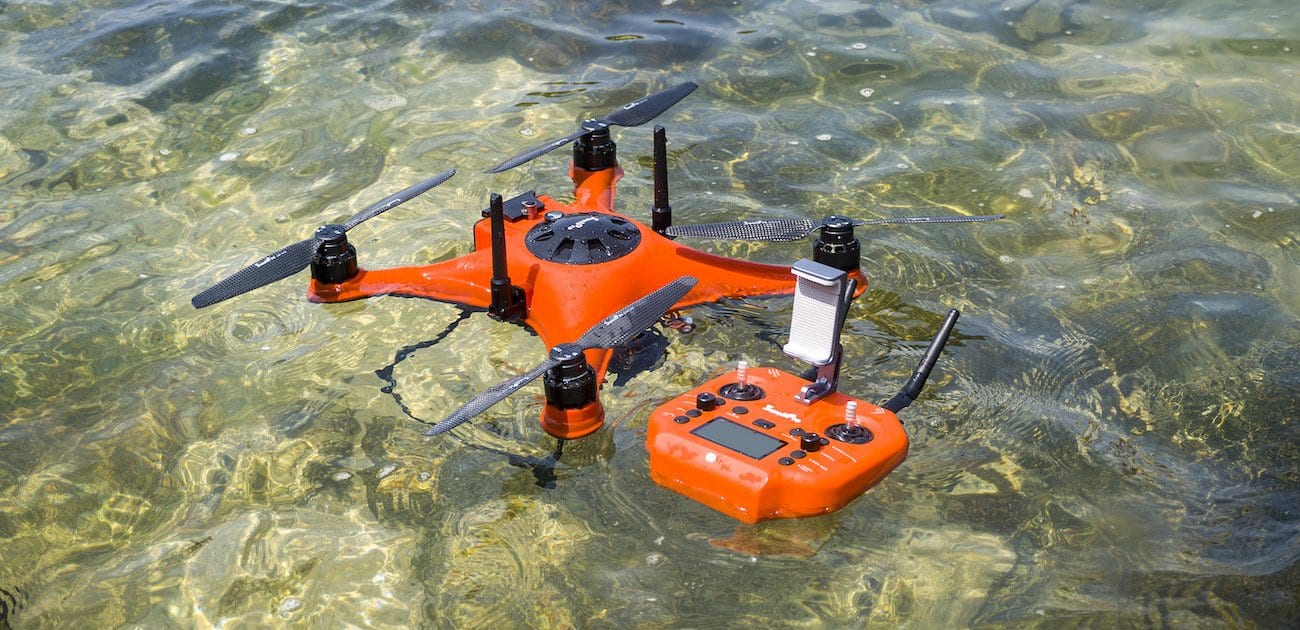

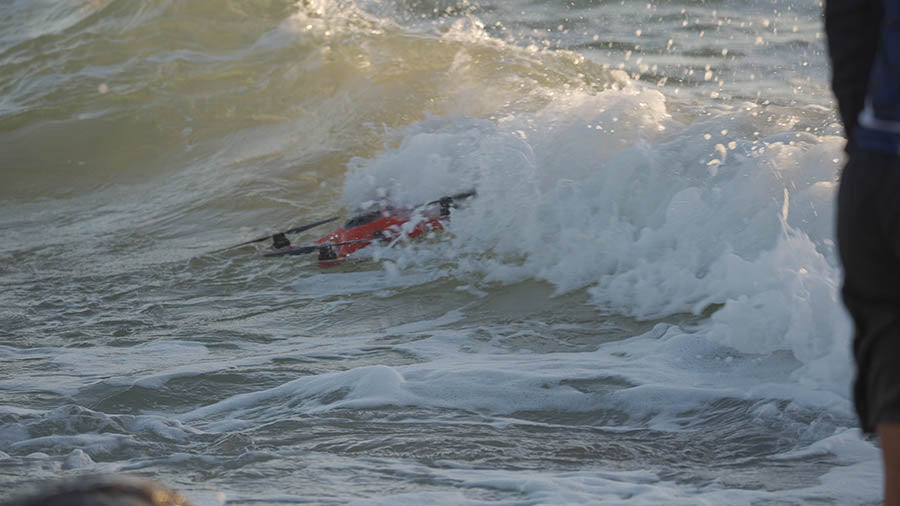

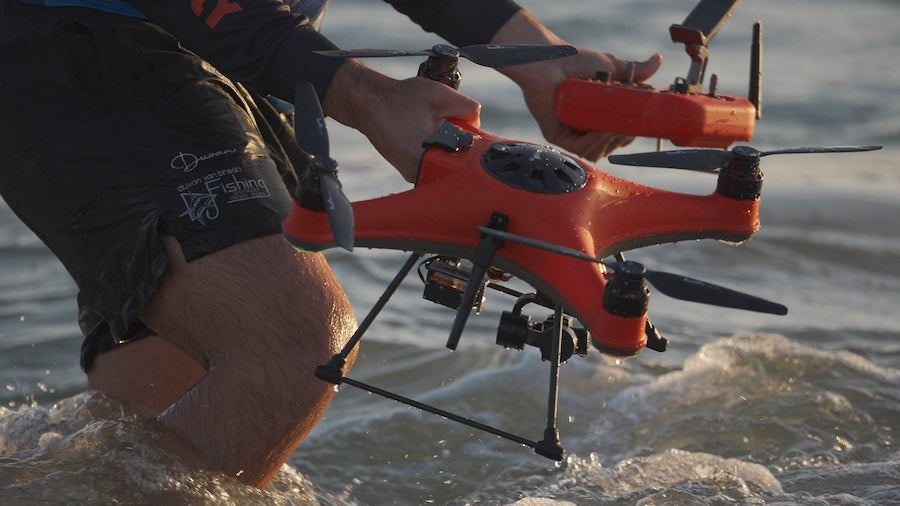

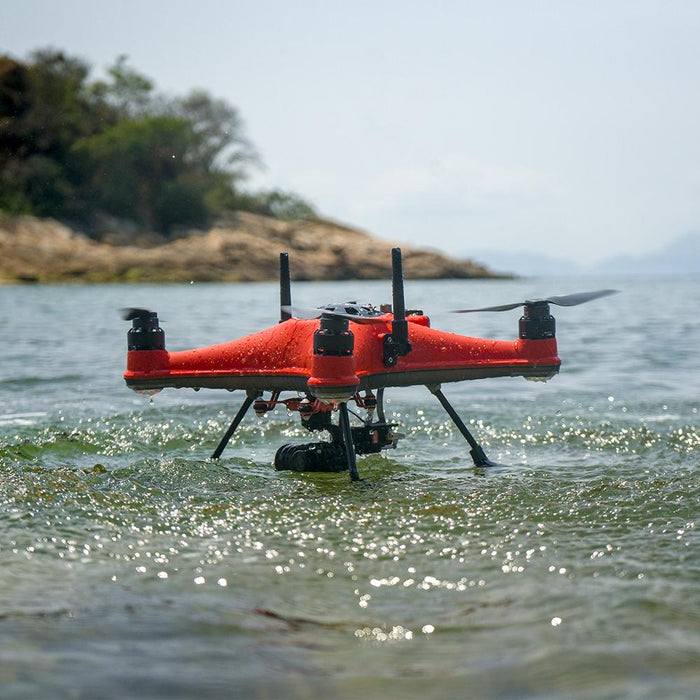

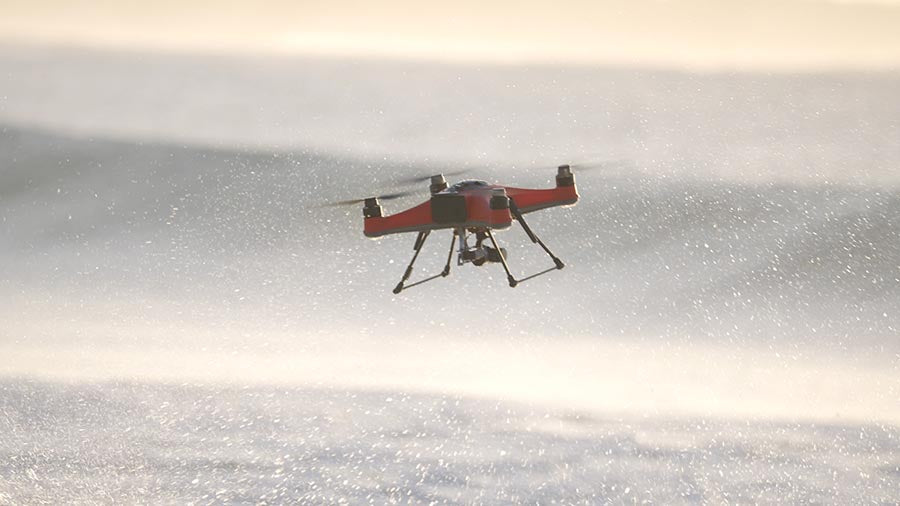

Splash Drone 4 Aircraft Specifications
|
|
Waterproof Rating:
|
IP67
|
|
Weight（include battery and propellers）：
|
2.18 kg
|
|
Axis Diameter:
|
450 mm
|
|
Max Ascend Speed:
|
4 m/s
|
|
Max Descend Speed:
|
4 m/s
|
|
Max Flight Speed:
|
22 m/s（ATTI), 10 m/s（GPS)
|
|
Max Tilt Angle:
|
ATTI: 12.5°; ATTI (fast): 25°
|
|
Max Altitude from Takeoff Point:
|
120m (GPS) / ATTI - no limitation
|
|
Max Wind Speed Resistance:
|
72 km/h | 20 m/s | 39 knot
|
|
Max Flight Time:
|
30 mins (no wind & no load);
(approx. 25 mins with GC3-S，approx.15 mins with load of 1.5kg)
|
|
Hovering Precision:
|
±0.5 m (vertical); ±0.5 m (horizontal)
|
|
Max Flight Distance：
|
5.0 km
|
|
Max Payload Capacity:
|
2.0 kg
|
|
Flight Control：
|
Hawk
|
|
Digital Video Transmission:
|
MultiSync
|
|
Motor：
|
#3509 - 740Kv (special coated)
|
|
ESC：
|
40A (flux)
|
|
Propellers：
|
#1242 carbon fiber quick release propellers
|
|
Motors：
|
#3509 - 740Kv
|
|
Operating Frequency:
|
5180 - 5875 MHz
|
|
Transmitter Power (EIRP):
|
FCC/IC: ≤ 24 dBm
CE/SRRC/MIC: ≤ 20 dBm
|
|
Working Temperature：
|
-10℃ ~ 40℃
|
|
Satellite Positioning Systems：
|
GPS/GLONASS
|
|
Pass-through Serial Port：
|
Connect to a third-party device and transfer the data of the third-party device to the remote control
|
|
UART:
|
Allows for TTL serial port to TCP, with baud rate of 115200
|
|
Wi-Fi Hotspot
|
IP: 192.168.1.101:2222
|
|
Power Input：
|
12V/2A | 5V/2A
|
|
|
|

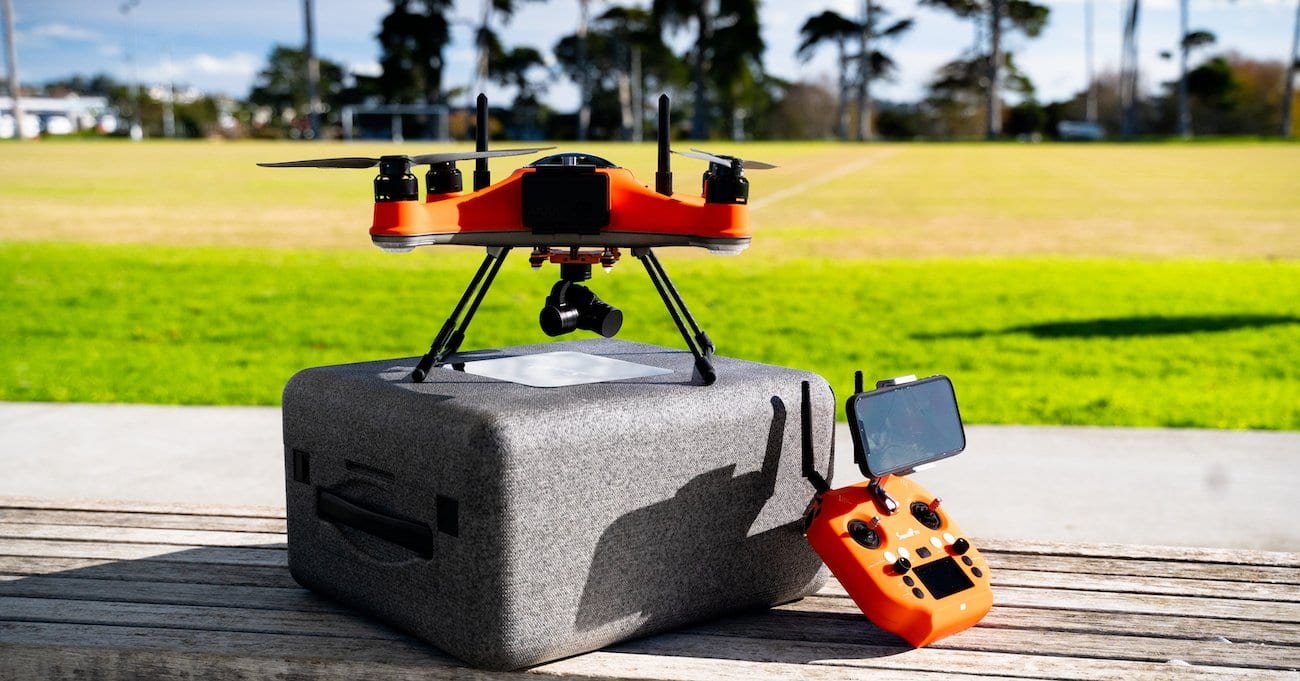

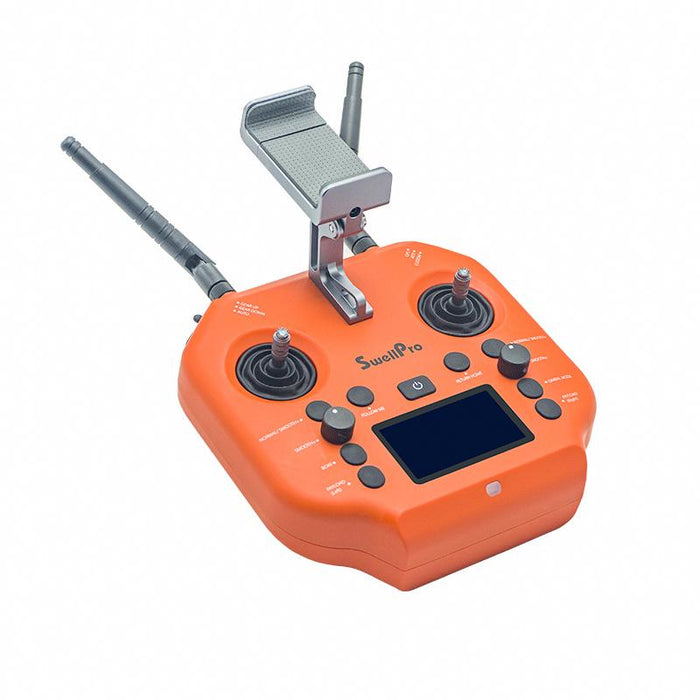

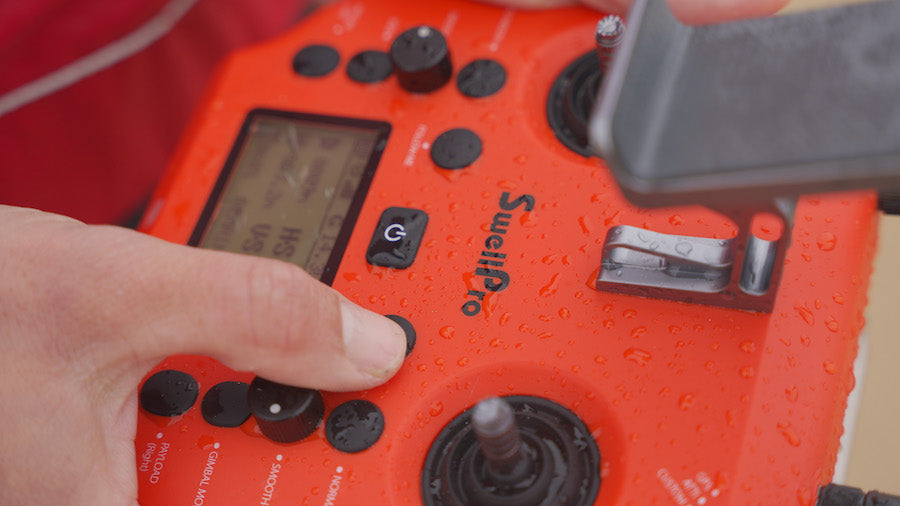

Remote Controller (MRC)
|
|
Waterproof Rating:
|
IP66
|
|
Operating Frequency:
|
5180 - 5875 MHz
|
|
Transmitter Power (EIRP)
|
FCC/IC: ≤ 24 dBm
CE/SRRC/MIC: ≤ 20 dBm
|
|
Real-time Video Transmission：
|
720P@30fps
|
|
Latency：
|
200 ms (It depends on the actual shooting environment and mobile devices)
|
|
Battery：
|
2S 3600mAh
|
|
Working Time:
|
7 hours
|
|
Working Current/Voltage:
|
0.3A/7.4V
|
|
Ethernet Port：
|
IP: 192.168.2.220:2222
|
|
Wi-Fi Hotspot
|
IP: 192.168.2.220: 2020; Default password: 12345678
|
|
Mobile Device Mount:
|
Suitable for any size phones;
Tablets require an larger mount(sold separately)
|
|
Screen：
|
2.68 inch, 128x64
|
|
Working Temperature：
|
-10℃ - 40℃
|
|
Remote Charging time:
|
3 hours
|
|
Power Input:
|
5V/2A
|
|
|
|
Intelligent Battery (IB4)
|
|
Nominal Capacity：
|
6600mAh
|
|
Voltage：
|
14.8V
|
|
Type：
|
Intelligent 4S LiPo
|
|
Watt Hours:
|
97.68 Wh
|
|
Size：
|
153.6*82.4*48.3mm
|
|
Weight：
|
735 g (±5 g)
|
|
Working Temperature：
|
-10℃ - 40℃
|
|
Charging Time:
|
1.5 hour
|
|
Max Charging Power:
|
84 W
|
|
|
|
Charger
|
|
Input
|
100 – 240V, 50/60Hz
|
|
Output：
|
16.8V@Dynamic Current / 5V@1.5A
|
|
Rated Power：
|
84.5 W
|
|
|
|
Mobile Device connection
|
|
|
Operation Frequency
|
5180 - 5875 MHz
|
|
Max Transmission Distance
(Unobstructed, free of interference)
|
10 m
|
|
|
|
APP
|
|
|
Mobile App Name
|
NaviFly
|
|
Live View Quality
|
720p@30fps
|
|
Latency
|
＜ 250 ms (depending on environmental conditions and mobile devices)
|
|
|
|
1-Axis Gimbal Camera (GC1-S)
|
|
|
Waterproof：
|
IP67
|
|
Axis：
|
1-axis (tilt)
|
|
Controllable range:
|
tilt: -90° to 0°
|
|
Max control speed:
|
tilt: 60°/s
|
|
Weight：
|
Approx. 145g
|
|
Size：
|
71*55*65mm
|
|
|
|
|
Sensor:
|
1/2.3" 12M SONY CMOS
|
|
Lens:
|
F4.53mm f/2.65, FOV: 92.6°
|
|
ISO Range:
|
100 - 3200
|
|
Shutter Speed
|
16 - 1/16000 s
|
|
Photo Resolution:
|
4:3/16:9 12MP
|
|
Burst Mode：
|
3/5/10 pcs
|
|
Interval Shot:
|
1/3/5/10s
|
|
Video Resolution:
|
4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120P | HD: 1280*720/240P
|
|
Max Video Bitrate:
|
64 Mbps
|
|
Photo Format:
|
JPEG / DNG (RAW)
|
|
Video Format:
|
MP4 / MOV
|
|
Memory Card:
|
Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.
|
|
Working Temperature：
|
-10℃ to 40℃
|
|
|
|
2-Axis Night Vision Gimbal Camera (GC2-S)
|
|
Waterproof：
|
IP67
|
|
Axis：
|
2-axis (tilt, roll)
|
|
Controllable range:
|
tilt: -90° to 0°
|
|
Max control speed:
|
tilt: 60 °/s
|
|
Weight：
|
Approx.220g
|
|
Size：
|
113*92*80mm
|
|
|
|
|
Sensor:
|
1/2" 2M Starlight CMOS
|
|
Lens:
|
FOV: 66°
|
|
Burst Mode：
|
3/5/10pcs
|
|
Interval Shot:
|
1/3/5/10s
|
|
Video Resolution:
|
FHD: 1920*1080 30/60P | HD: 1280*720 120/60P
|
|
Max Video Bitrate:
|
64 Mbps
|
|
Photo Format:
|
JPEG
|
|
Video Format:
|
MP4 / MOV
|
|
Memory Card:
|
Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.
|
|
Working temperature:
|
-10℃ to 40℃
|
|
|
|
|
3-Axis Gimbal Camera (GC3-S)
|
|
|
Waterproof：
|
IP67
|
|
Axis：
|
3-axis (tilt, pan, roll)
|
|
Controllable range:
|
tilt: -90°to 0°
|
|
Max Control Speed:
|
tilt: 60°/s
|
|
Weight：
|
Approx. 310g
|
|
Size：
|
113*92*110mm
|
|
|
|
|
Sensor:
|
1/2.3" 12M SONY CMOS
|
|
Lens:
|
F4.53mm f/2.65, FOV: 92.6°
|
|
ISO range:
|
100 - 3200
|
|
Shutter Speed
|
16 - 1/16000 s
|
|
Photo Resolution:
|
4:3/16:9 12MP
|
|
Burst Photo：
|
3/5/10 pcs
|
|
Interval Photo:
|
1/3/5/10s
|
|
Video Resolution:
|
4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
|
|
Max Video Bitrate:
|
64 mbps
|
|
Photo Format:
|
JPEG / DNG (RAW)
|
|
Video Format:
|
MP4，MOV
|
|
Memory Card:
|
Micro-SD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, supports Class 10 or above & UHS-1 rating
|
|
Working temperature：
|
-10℃ to 40℃
|
|
|
|
3-Axis Thermal Gimbal Camera (GC3-T)
|
|
|
Waterproof：
|
IP67
|
|
Axis：
|
3 axis (tilt, pan, roll)
|
|
Controllable range:
|
tilt: -90° to 0°
|
|
Maxcontrol speed:
|
tilt: 60°/s
|
|
Weight：
|
Approx. 450g
|
|
Size：
|
110*100*115mm
|
|
|
|
Low-light Camera
|
|
|
Image Sensor:
|
1/2" 2M Starlight CMOS
|
|
Lens:
|
FOV: 66°
|
|
Burst Photo：
|
3/5/10pcs
|
|
Interval Photo:
|
S1/3/5/10s
|
|
Video Resolution:
|
FHD: 1920*1080 30/60p | HD: 1280*720 120/60p
|
|
Max Video Stream:
|
64 Mbps
|
|
Photo Format:
|
JPEG
|
|
Video Format:
|
MP4 / MOV
|
|
Support Memory Card:
|
Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.
|
|
Working temperature：
|
-10℃ to 40℃
|
|
|
|
IR Camera
|
|
|
Image Sensor:
|
Vanadium oxide uncooled infrared focal plane detector
|
|
Lens:
|
19mm/25mm
|
|
Resolution@frame rate:
|
640*512 @30p/48p/50p
|
|
Palette:
|
White hot / black hot / Rainbow / Rainbow high contrast / iron red / lava / Sky / medium gray / grey red / purple orange / Special 1 / warning red / ice fire / cyan red / special 2 / gradient red / gradient green / gradient blue / warning green / warning blue
|
|
Crosshairs：
|
Show (default), hide, move
|
|
Contrast Ratio：
|
Slider adjustment (0-255)
|
|
Brightness:
|
Slider adjustment (0-511)
|
|
DDE gear (image enhancement):
|
Off / On (default on)
|
|
Temperature measurement OSD on / off:
|
Off / On (the default displays the highest, lowest, and center point temperatures)
|
|
Temperature measurement unit：
|
Centigrade, Kelvin, Fahrenheit
|
|
Temperature measurement alarm：
|
Off, low temperature alarm, high temperature alarm, high and low temperature alarm
|
|
Low temperature alarm setting:
|
-20℃～+150℃
|
|
High temperature alarm setting:
|
-20℃～+150℃
|
|
|
|
Fixed Angle Camera (FAC)
|
|
|
Waterproof Rating：
|
IP67
|
|
Weight：
|
Approx. 85 g
|
|
Size：
|
45*44*40mm
|
|
|
|
|
Image Sensor:
|
1/2.7" 2M SONY CMOS
|
|
Lens:
|
F2.2mm f/5.06, FOV: 130°
|
|
Burst Photo：
|
3/5/10pcs
|
|
Interval Photo:
|
1/3/5/10s
|
|
Video Resolution:
|
FHD：1920*1080 30/60p，HD：1280*720 120/60p
|
|
Max Video Stream:
|
30 Mbps
|
|
Photo Format:
|
JPEG
|
|
Video Format:
|
MP4 / MOV
|
|
Memory Card:
|
Micro SD CARDS with a maximum capacity of 128GB, write speed ≥30 MB/s, supports Class 10 or above & UHS-1 rating
|
|
Working temperature：
|
-10℃ to 40℃
|
|
|
|

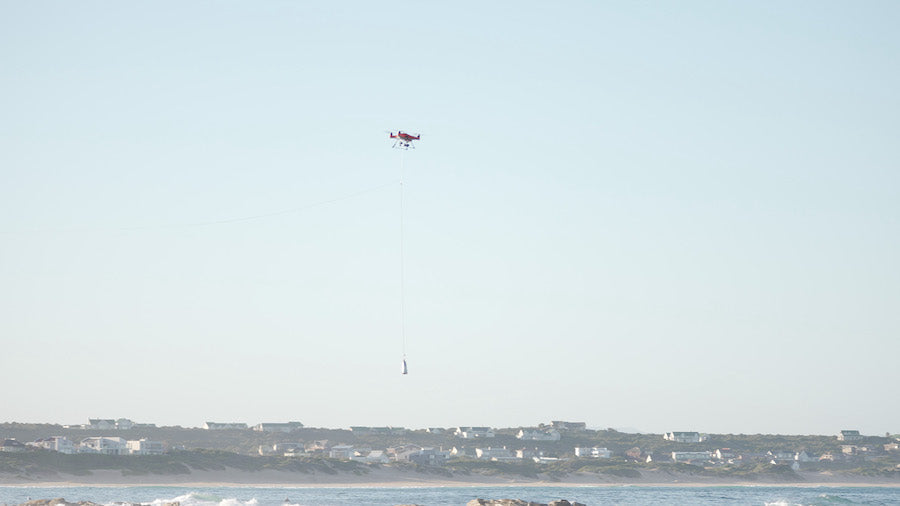

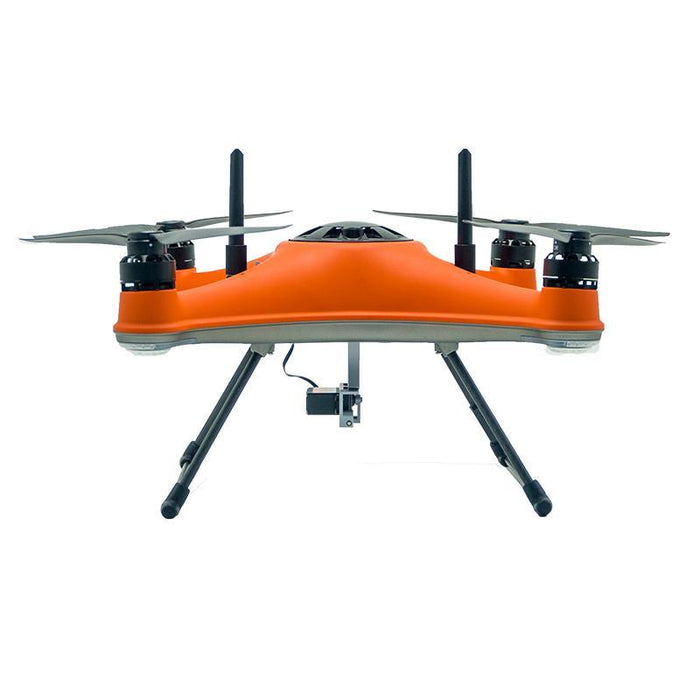

Payload Release (PL1-S)
|
|
|
Waterproof Rating：
|
IP67
|
|
Weight：
|
59*38*50mm
|
|
Size：
|
96 g
|
|
Max. loading weight：
|
2 kg
|
|
|
|
Parachute (PTE4)
|
|
|
Size：
|
155*134*122mm
|
|
Weight：
|
500 g
|
|
Max. loading weight：
|
6 kg
|
|
Release：
|
Manual/Automatically
|
|
|
|
Life Buoy (LB1)
|
|
|
Weight：
|
366 g
|
|
Size：
|
205*100*65 mm
|
|
Material：
|
Polyester Oxford neoprene
|
|
Airbag material：
|
Nylon+ TPU
|
|
Inflation Time：
|
less than 5s
|
|
Buoyancy：
|
150 N
|
|
Buoyancy time：
|
more than 48 hrs
|
|
Loss of buoyancy after 24 hours：
|
≤5％
|
|
Carbon dioxide weight：
|
3 / 8-24UNF，24g
|
|
|
|
Extension Bar
|
|
|
Weight：
|
366 g
|
|
Length：
|
70 mm
|
|
Material：
|
Carbon fiber tube & alluminum base
|
|
|
|
Dronar 01 (Fish Finder)
|
|
|
Depth Range Max:
|
120 feet (40 m)
|
|
Depth Range Min:
|
2 feet (0.6 m)
|
|
Sonar Frequency:
|
125 kHz Single Beam
|
|
Cone Angle:
|
30°
|
|
Audible Alarms:
|
Fish, Depth, Low Battery
|
|
Working Temperature:
|
-20℃ to 80℃
|
|
Transmission Distance:
|
10 m with phone; 3km with drone
|
|
Interface:
|
Dronar APP
|
|
Battery:
|
3600 mAh, 11.1 V; 39.96 Wh
|
|
Connection:
|
5Ghz Wi-Fi
|
